The photographs were taken under cloudless conditions the
afternoon of 13 July, using a 35-mm lens, with Kodachrome 64 film, F-stop=11 and 1/125th
of second. Transparencies were scanned to 4-MB TIFF files with a Polaroid Scanner,
and the digital images opened in Adobe PhotoShop, tilted to parallel, brightness-adjusted
+35 units, contrast adjusted to +30 units, uniformly cropped, and sized to 380 pixels
width, and black plot borders added. PhotoShop files were optimized with Ulead
SmartSaver to JPEG quality level 60, no smoothing. |
|
Originated from Mississippi State University,
MS-Supreme was developed by Dr. Jeff Krans. These four replicated plots were planted
at University of Florida - Fort Lauderdale in May 1997. Throughout most of their
evaluation they were mowed at 1/8 inch. Plots were aerified the week of 21 June 1999
and were treated with excess rates of herbicides 29 June 1999 and again 7July 1999, thus
the cumulative rates were actually 2X, 4X, 6X, 8X, and 10X. Mowing was suspended as
soon as treatments began.
MS-Supreme bermudagrass performed overall: Poor (6.0) |
|
|

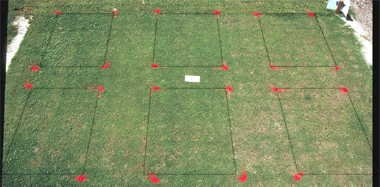

Basagran T/O (top row 0X, 1X, and 2X; bottom row 3X, 4X,
and 5X). Herbicide injury. Poor in this replicate |
|
|
|

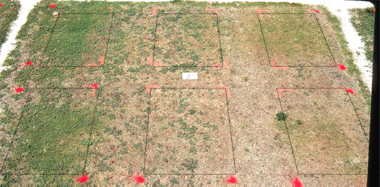

Illoxan 3EC (top row 0X, 1X, and 2X; bottom row 3X, 4X,
and 5X). Extremely weak, severe injury. |
|
|
|

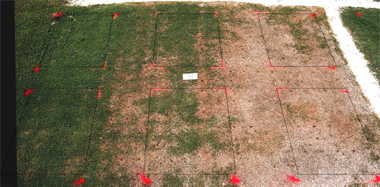

MSMA 6.6 (top row 0X, 1X, and 2X; bottom row 3X, 4X, and
5X). Severe injury. Otherwise, very nice grass. This
grass was very weak before spraying. |
|
|
|

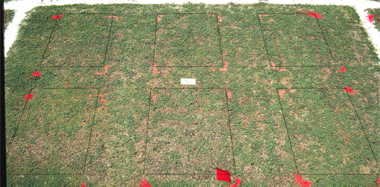

Primo (top row 0X, 1X, and 2X; bottom row 3X, 4X, and
5X). Very weak. |
|
|
|
|
